Gas Line Sizing Table

Gas Line Sizing Tables

Maximum Delivery Capacity of Cubic Feet of Gas Per Hour of IPS Pipe Carrying Natural Gas of 0.60 Specific Gravity

(Based on a Pressure Drop of 0.5 Inch Water Column)

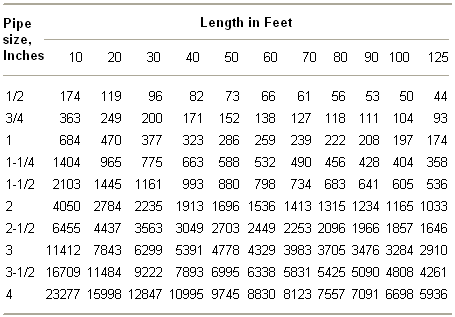

Gas Line Sizing Table 1

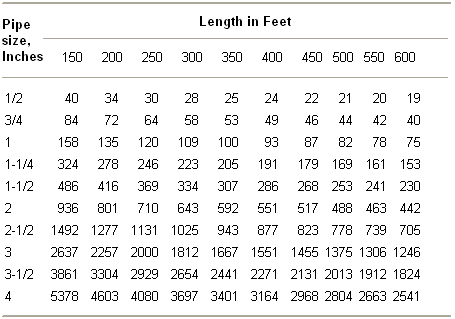

Gas Line Sizing Table 2

Common Vent Capacity - Type B Double Wall Vent

Gas Line Sizing Table 3

Gas Pipe Sizing Guide

Maximum Capacity of Pipe in Thousands of BTU per Hour of Undiluted Liquified Petroleum Gases (LPG)

(Based on a Pressure Drop of 0.5 Inch Water Column)

Low Pressure 11" Water Column

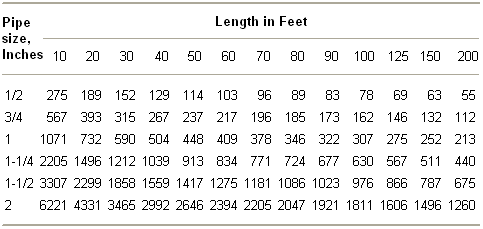

Gas Line Sizing Table 4
