Details

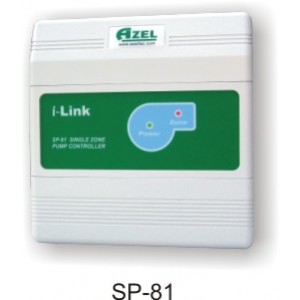

The SP-81 universal single zone switching relay is operated by low voltage thermostats or any other low
voltage controllers having a SPST switching action. The SP-81 provides intermediate switching to permit up
to two separate line voltage loads such as circulators.
FEATURES:
- Front panel indicator lights
- Fuse protection
- Power surge protection
- Easy-Connect Terminals/Screw less Terminals
- Compact and modern design
- Safety design with all electronic components
- Simplified wiring
- Universal Design: Cold Start or Tankless Coil Boiler
- Contractor friendly PCB layout
- High Capacity Transformer
- 24VAC transformer output with common terminal
- Universal thermostat compatibility
- 100% Factory Tested • Extended 3 year warranty
SPECIFICATIONS:
- Model: SP-81 1 Zone Switching Relay
- 120 VAC, 50/60 Hz Power Supply
- 6 3/8" W x 6 5/8" H x 2 3/4" Dimensions
- 10 A 1/3 HP @ 120VAC
- 0.18 A Thermostat Anticipator Setting
- Flame Retardant Plastic 94V0
- Shipping Weight 2 Lbs
