Details
Z-one valves are used to automatically shut-off the flow or redirect hot and

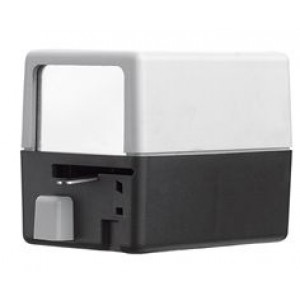

chilled water in hydronic heating and air conditioning systems. The motorized two position, on/off/, spring return A1 series actuator has an
end mounted push button for quick installation to valve body. The actuator is
equipped with or without auxiliary switch and configured Normally closed or
Normally Opened with wire or terminal connections.
Z1 actuator mounts on Z2 and Z3 series
valve bodies with the push of a button.
Two position spring return normally closed.
Power: 24, 120, 208, 230 & 277 VAC.
Power consumption: 5.0W, 7VA.
Rating of auxiliary switch contacts:
24 VAC: 0.0 A min, 0.4 A max (24 V).
Z111000 HCS: 0.25 A min, 5 A max
(250 V).
120-277 VAC: 0.25 A min, 5.0 A max
(250 V).
UL873, cUL Listed & CE. US Patent
7,048,251, others pending.
UL 1995 sec. 18 approved for air plenums
and ducts
