Details
Z-one valves are used to automatically shut-off the flow or redirect hot and
chilled water in hydronic heating and air conditioning systems. The motorized two position, on/off/, spring return A1 series actuator has an
end mounted push button for quick installation to valve body. The actuator is
equipped with or without auxiliary switch and configured Normally closed or
Normally Opened with wire or terminal connections.

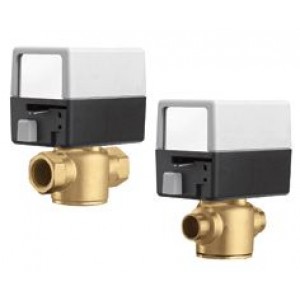

The zero leakage high temperature zone valve body Z2 series is 2-way straight
through and the valve body Z3 series is 3-way diverting. The Z1 series
actuator is easily attached by a push button lock and without tools.
The high temperature and high close-off performance characteristics of these
zone valves, combined with the compact size, makes them suitable to fit inside
baseboard or directly in fan coil units.
Two-way zone valve. Spring return.
Normally closed actuator: Z111000.
Auxiliary micro-switch.
Max. body pressure: 300 psi.
Temperature range: 32º—240°F.
Power supply: 24 VAC.
Power consumption: 5.0 W, 7 VA.
Rating of auxiliary micro-switch contacts:
0.0 A min, 0.4 A max 24V (24 V only).
18" wire lead connection.
UL873, cUL Listed & CE.
UL 1995 sec. 18 approved for air plenums
and ducts.
US Patent 7,048,251, others pending
